ShowVault Pivot Door
ShowVault™ display cases are built-in architectural showcases engineered for high-traffic environments where visibility, security, and design all matter. Featuring a full-framed aluminum body and tempered glass doors, these cases offer front-facing access without sacrificing the clean, streamlined look. Whether recessed into a single wall or installed as a double-sided room divider, ShowVault™ offers unmatched flexibility with premium finishes and acoustic PET felt backing to reduce glare and echo.
Key Features:
- Fully built-in case designed for flush wall integration
- Pivoting tempered glass door(s) with locking hardware
- Aluminum frame construction with clear or custom anodized finish
- Optional double-sided viewing window through shared wall
- Integrated 9mm PET felt backer for acoustic performance
- Cable or bracket-mounted 3/8″ tempered glass shelves
- Ready for LED lighting integration (lighting by others)
Specifications:
Standard Depth Height & Width: 18”
Field verified: widths vary by unit configuration
Glass Thickness Shelves: 3/8” Doors: ¼”
Frame System: Full-frame anodized aluminum enclosure, recessed mounting
Doors: Sliding or Pivoting tempered glass, polished edge, full swing or restricted angle
Glass: 1/4″ tempered safety glass, ANSI Z97.1 / CPSC Cat II compliant
Track: 1 3/16″ x 1/2″ aluminum track (Stylmark #110178)

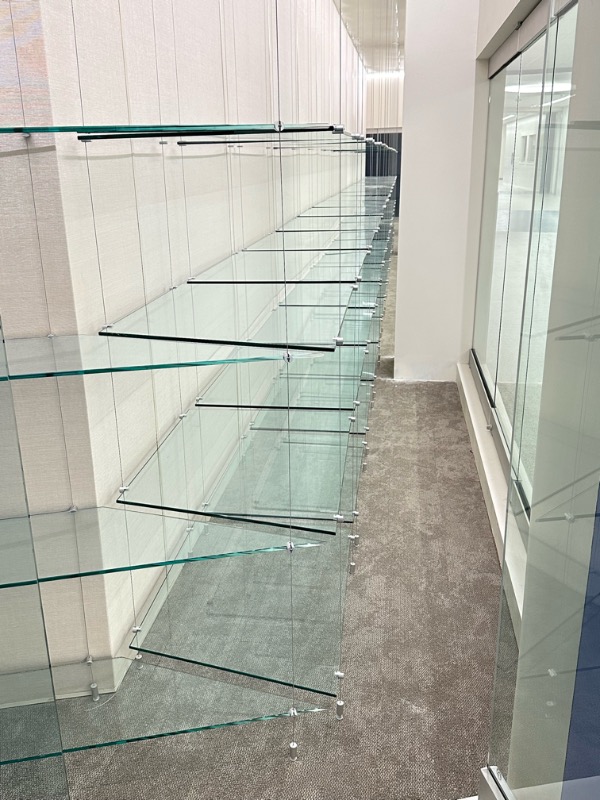

Shelves: 3/8″ tempered glass suspended via 1/16″ cables or mounted brackets
Back Panel: 9mm PET Felt (standard in Black or custom ONNiT colors)
Locking System: Keyed cam lock or push-button lock (concealed)
Finish: Satin Clear Anodized
Lighting: Fixture-ready cavity (LED by others; electrical contractor required)
Available Colors:
ONNiT Systems offers 32 standard color options carefully curated for modern architectural spaces. Custom colors and color-matching services are also available upon request.
