HonorView

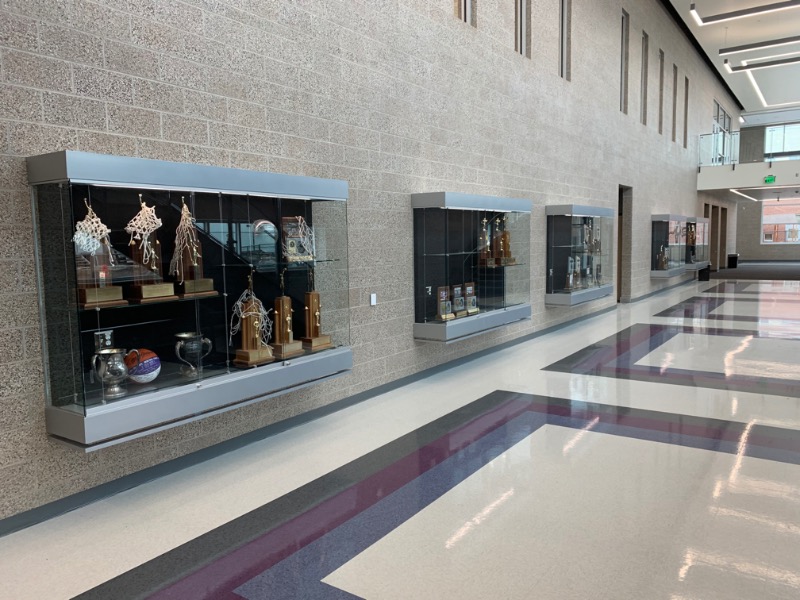

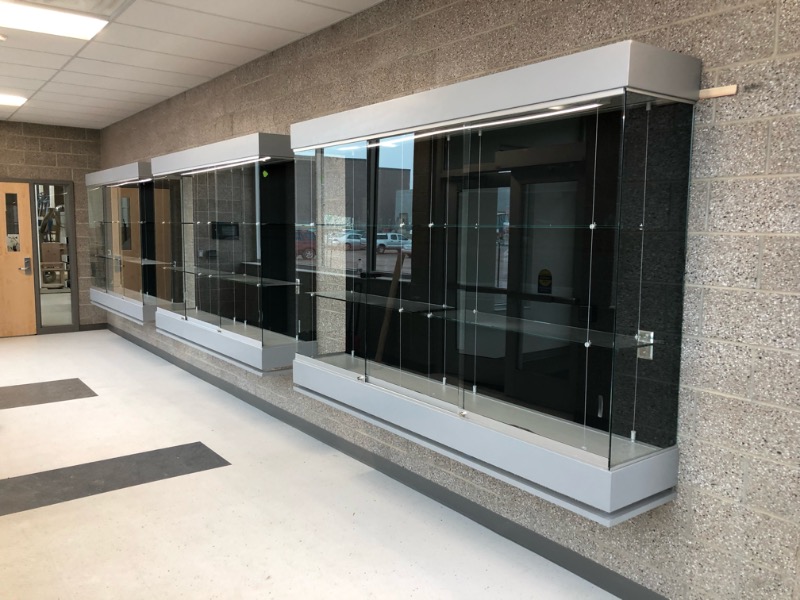

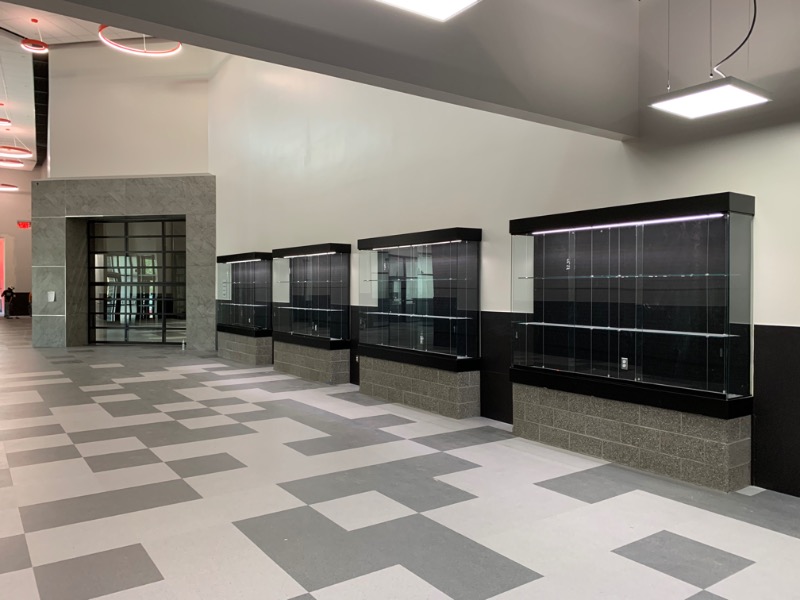

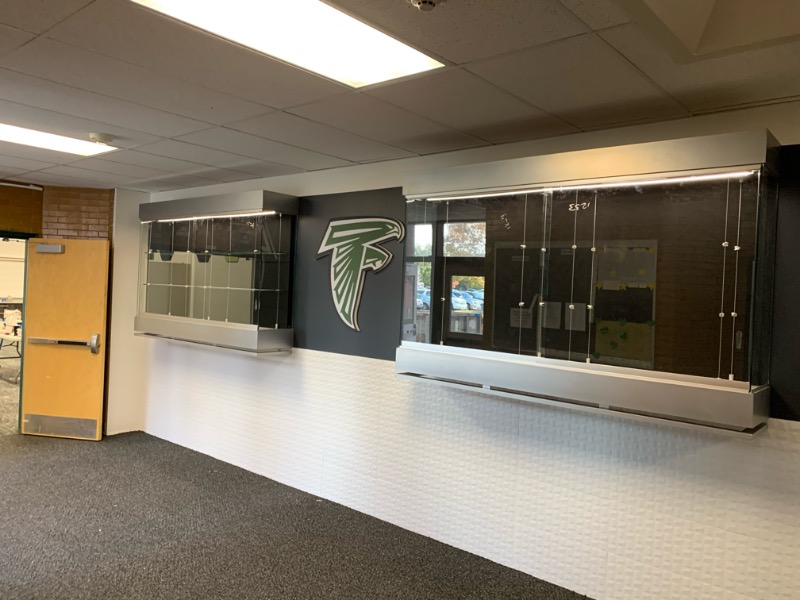

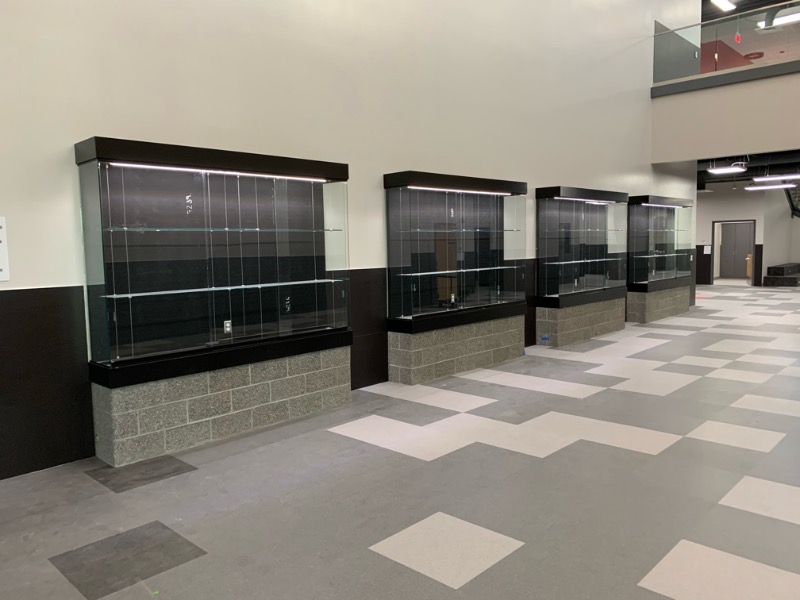

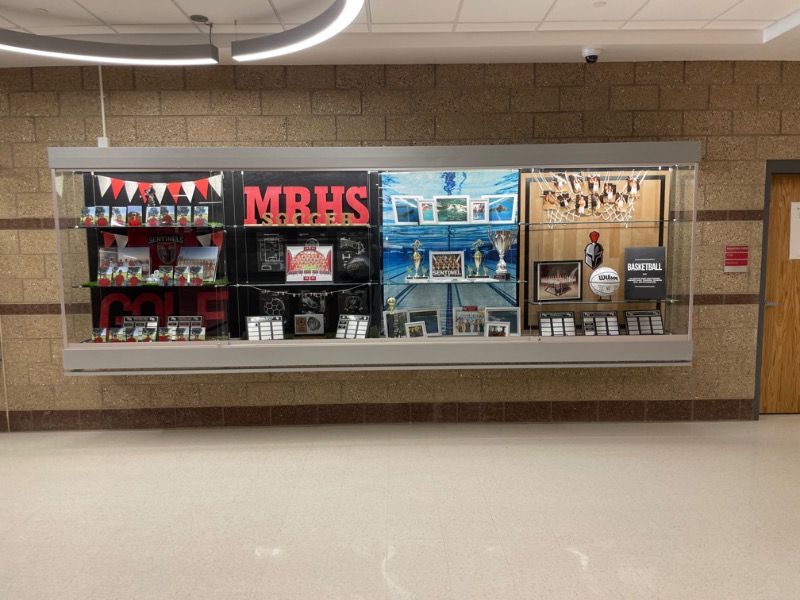

The HonorView™ Wall Mount Display Cases is a refined, wall-mounted solution designed to elevate the presentation of awards, achievements, and memorabilia. Engineered with a bold aluminum frame and crystal-clear tempered glass panels, HonorView™ showcases contents with clean architectural precision. Suspended glass shelving and a sound-absorbing PET felt backer combine to create a display that is both visually striking and acoustically mindful. Ideal for schools, athletic facilities, offices, and public buildings, HonorView™ is the premium choice for honoring excellence.
Key Features:
- Sleek 3-sided tempered glass enclosure with anodized aluminum frame
- Sliding glass door system with secure lock
- Suspended 3/8” tempered glass shelves supported by tension cables
- Integrated PET Felt Sound-Tack panel for acoustic absorption and visual contrast
- Multiple mounting configurations available
- Designed for clean lines, easy installation, and low maintenance
Specifications:
Frame System: 1 3/16″ x 13/16″ aluminum top channel (Stylmark #110008)
Doors: Sliding tempered glass with polished edges and routed finger pulls
Track: 1 3/16″ x 1/2″ aluminum track (Stylmark #110178)
Glass: 1/4″ tempered safety glass, ANSI Z97.1 & CPSC Cat II compliant
Shelves: 3/8″ tempered glass, suspended via 1/16″ steel cables with tensioners
Sound-Tack Panel: 9mm PET Felt (Black standard; full color palette available)
Locking System: Chrome K-41 plunger lock with concealed hardware
Finish: Satin Clear Anodized (Custom anodized finishes available upon request)
Lighting: Fixture-ready header cavity (LEDs by others; see electrical section)
Available Colors:
ONNiT Systems offers 32 standard color options carefully curated for modern architectural spaces. Custom colors and color-matching services are also available upon request.
